Prime X | Attachments
Note: This article applies to both Prime 3 Haptic XR Gloves and Prime 3 Mocap Gloves
Note: This article applies to both Quantum Mocap Metagloves and Quantum XR Metagloves.
This tutorial can be used for all Prime II and Prime X gloves, including both the Xsens PRO and OptiTrack PRO partner models.
Introduction
The Prime II and Prime X series gloves can be used with a large variety of different tracking systemem. To add hand and finger tracking to your personal tracking setup MANUS offers a set of adapters to connect trackers to the top of the gloves.
HTC Vive Tracker

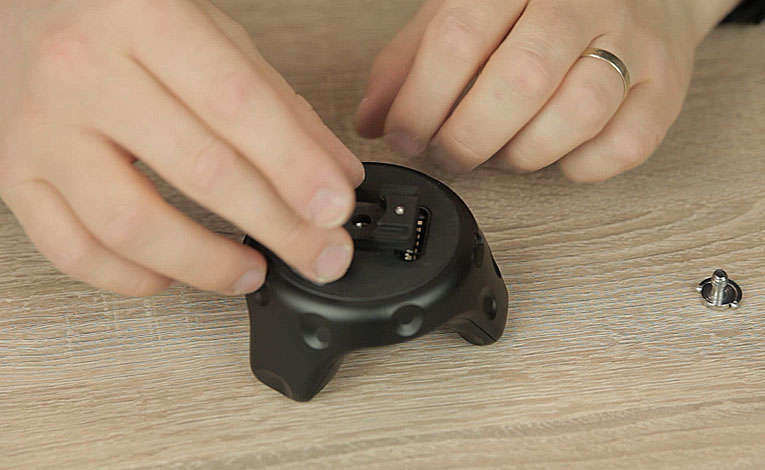

STEP 1
Align the VIve adapter on the back
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f8705ec7149bdd837fe5_Tutorial_image_attach_vive01.jpg)
STEP 2
Screw it in place
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f888bbb4647b002a6cac_Tutorial_image_attach_vive.jpg)
STEP 3
Slide it on the universal mount. The HTC Vive tracker is now ready to be calibrated and used.
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f8d23db454a2587cd641_Tutorial_image_attach_vive02.jpg)
Oculus Controller
STEP 1
Insert the Oclulus adapter
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f90e2726bdfef5c41e5e_Tutorial_image_attach_cont02.jpg)
STEP 2
Check the Orientation. Make sure you have the correct Left and Right orientation.
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f93607fa08930fa6d263_Tutorial_image_attach_cont01.jpg)
STEP 3
Slide it on the universal mount.
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f99ab301bcebdc62c07d_Tutorial_image_attach_cont03.jpg)
OptiTrack
STEP 1
Slide in the OptiTrack adapter.
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f9d796a65cc24ee325ab_Tutorial_image_attach_optitrack02.jpg)
STEP 2
Slide it on the universal mount. The OptiTrack tracker is now ready to be used.
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476f9f707fa08930fa794dc_Tutorial_image_attach_optitrack03.jpg)
ART Tracker
Slide the ART Tracker on the Glove. The ART tracker can be mounted directly to the universal mount.
![](https://cdn.prod.website-files.com/61f1346be9b2882b854a2ece/6476fa1be0f4dc148be8e2a0_Tutorial_image_attach_art.jpg)
